Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | luckydoor |
Certification: | CE FCC ROHS |
Private Mold: | NO | Products Status: | Stock |
---|---|---|---|
Type: | Barcode Scanner | Scan Element Type: | CMOS |
Colour Depth: | 32 Bit | Interface Type: | Usb |
Max Paper Size: | A4 Size | Optical Resolution: | 4mil |
Scan Speed: | >300 Scans/sec | Warranty(year): | 2-Year |
After-sales Service: | Free Spare Parts | Software Development Kit (sdk): | NO |
Color: | Black | Product Name: | Warehouse Wireless Scanner |
Scanning Speed: | 150 Scans/second | Working Voltage & Current: | 85mA/550mA |
Transmission Distance: | 100m | Depth Of Scan Field: | 0-250mm(0.33mm, PCS90%) |
Operating Frequency: | 2.4G | Light Source: | 650nm Visible Laser |
Application: | Logistics Industry |
K-211R Warehouse 2.4ghz wireless Portable 1D Blue-tooth laser barcode scanner android
1d Wireless Barcode Scanner With Memory, Best Wireless Barcode Scanner For Warehouse
Product Description:
This K-211R is one cheap and high cost effective 2.4g wireless laser barcode scanner ,the battery can support around 20000 scans after full charge , open transmit distance around 50-80m,it also can use as wired or corded barcode scanner when the battery power run out ,it is very good for warehouse ,logistic and health care ,it is one of our hot selling warehouse barcode scanner.
Product Specification:
Performance Parameters | ||||||
Light Sources | 617nm laser (Safe visible laser diode) | |||||
Supported Symbologies |
UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN, Code 32(Italian pharm code), Code 39 extended, ITF-14, RSS 14, etc. |
|||||
Scan Type | Single Laser | |||||
Scan Speed | ≥150 times/s | |||||
Scan Method | Manual/Continuous/Automatic Scanning | |||||
Scan Angle | Yaw 55°, Rotation 30°, Pitch 65° | |||||
Precision | 4mil (0.1mm) | |||||
Depth of scan field | 10-250mm (0.33mm, PCS90%) | |||||
Error Rate | Less than 1/5million | |||||
Interface | USB-HID | |||||
Operating Frequency | 2.4G | |||||
Transmission Distance | 50-80M (Open Yard) | |||||
Storage Ability | 512000 Bytes | |||||
Pairing Model | One to one | |||||
Physical Parameters | ||||||
Dimensions | 83mm*70mm*172mm | |||||
Weight | 152.2g | |||||
Material | ABS+PC, flameresistant material | |||||
Cable Length | 1.2m | |||||
Environmental Parameters | ||||||
Operating Temperature | -20℃ ~ 40℃ | |||||
Storage Temperature | -40℃ ~ 70℃ | |||||
Relative Humidity | 0%~85% RH (Non-condensing) | |||||
Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete | |||||
Electrical Parameters | ||||||
Voltage | DC5V±10% | |||||
Current | 85mA (Operating); 150uA (Standy Current) | |||||
Lithium battery | 550mA |

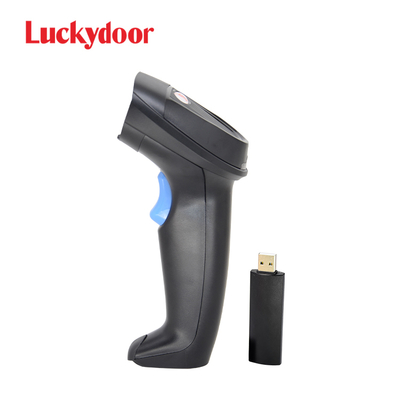

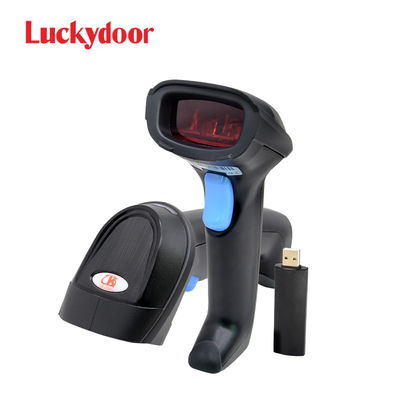

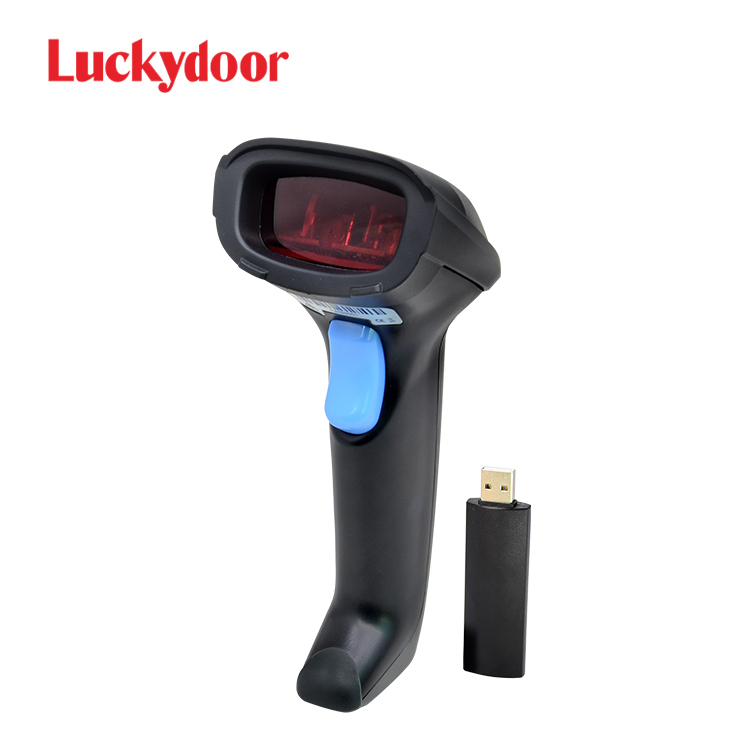

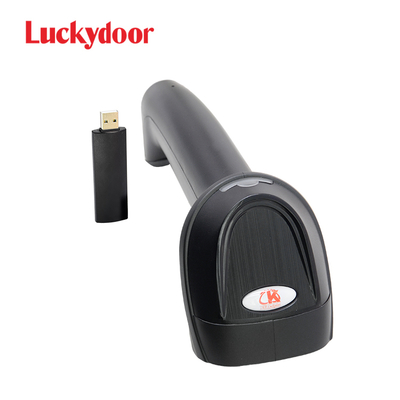

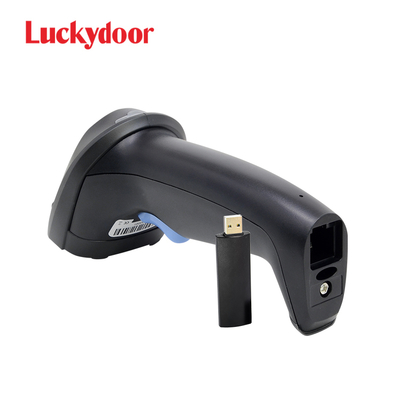

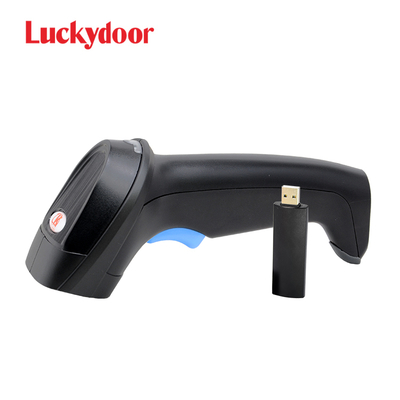

Product Photos:
Product Application:
• Warehouse inventory management
• Transport and logistic
• Tracking
• Picking and packing
• Retail
• Point of sale
FAQ:
1,How do I set up a wireless barcode scanner?
The barcode scanner and usb dongle( data receiver) already paired before delivery ,you can just plug the usb dongle to your computer or other kind of device through usb port , make sure your device identify the equipment successful,then use the scanner to read paper barcode , it will upload the data to your computer files like excel ,word or note etc
2,Can a 1d scanner read QR codes ?
No, 1d scanner only can read 1D barcodes like EAN13,UPC,Code128,Code39 etc ,laser scanner only read paper printed 1d barcodes ,and CCD barcode scanner can read paper 1d barcode and phone screen barcodes
3,how many barcodes can this wireless barcode scanner store ?
It can store around 35000 barcodes (EAN13)
4,Can I use this wireless laser barcode scanner as corded or wired scanner ?
Yes , it can use as corded or wired scanner through the charging cable ,and need to set it as wired mode in advance
5,How long can this barcode scanner gun wireless work after full charge ?
It can continuous working 5-6 hours ,and can scan about 20000 barcodes
1D Wireless Barcode Scanner Pakcing Details:
1*Warehouse Barcode Scanner K-211R
1*Adapter
1*1.5m cable
1*User Manual(English Version)
Dimensions per Unit: 10*7.8*21.5 CM
Weight per Unit: 0.282KG
Units per Export Carton: 50 Units
Export Carton Dimensions: 53*50*42.5 CM
Export Carton Weight: 16.5KG
