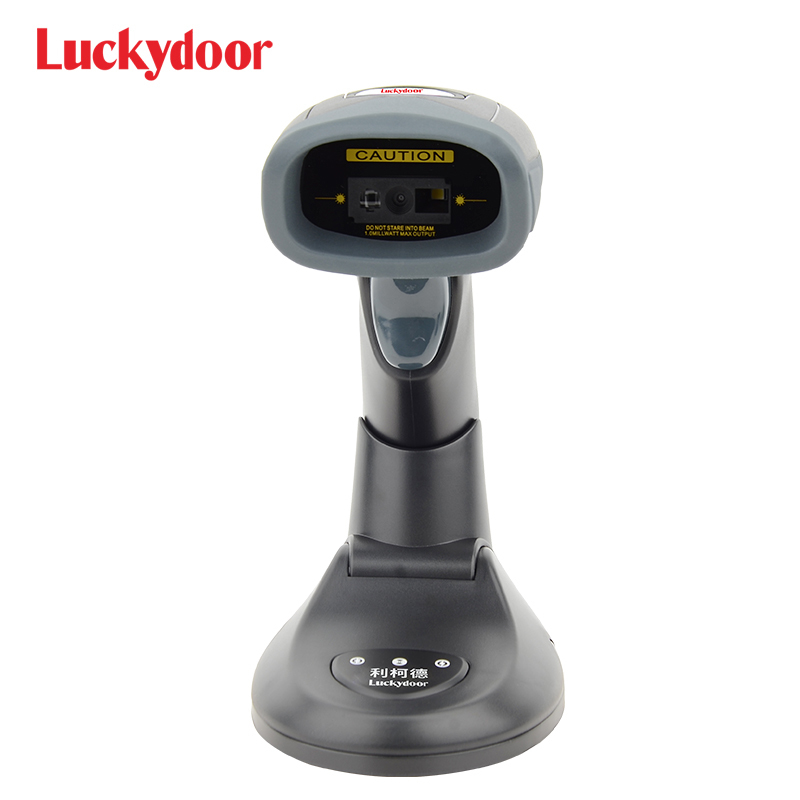

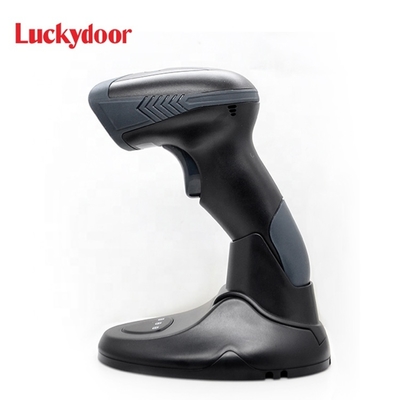

Name: K-625BT Stock 2D Wireless for Bluetooth Barcode Scanner with Charging Base 2D USB Wifi Barcode Reader A4 Size Com Interface
Brand: Guangzhou Luckydoor Electronic & Equipment Co., Ltd.
Availability: InStock

Home Products Portable Wireless Barcode Scanner

K-625BT Stock 2D Wireless for Bluetooth Barcode Scanner with Charging Base 2D USB Wifi Barcode Reader A4 Size Com Interface

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Luckydoor
Certification:	FCC, RoHS, CE

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, COM, PS/2
Max Paper Size:	A4 Size	Optical Resolution:	Code39 4.8mil
Scan Speed:	25inch/63cm Per Second	Warranty(year):	2-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (sdk):	NO
Color:	Black	Product Name:	Qr Code Scanner
Light Source:	617nm LED Aimer, White LED	Depth Of Scan Field:	35-190mm
Working Current:	280mA	Interface Type:	USB, COM
Housing Material:	ABS+PC	Dimensions (W X D X H): X H)::	87mm137mm169mm

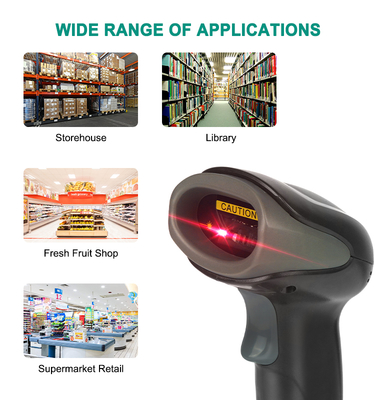

Application:	Logistics, Supermarket, Store, Libary, Warehouse, Hospital, Etc

Product details:

Working Parameters

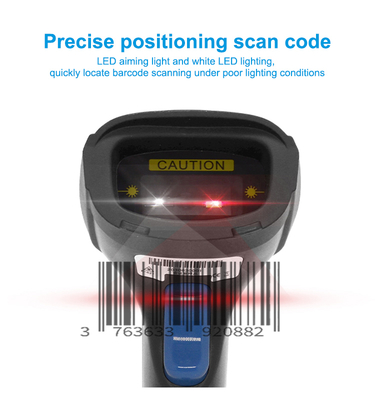

Light Source	617nm LED Aimer,White LED
Scan Distance	5-390mm
Scan Angle	Yaw 65°,Rotation 60°,Pitch 360°
Scan Speed	>25inch/63cm each second
Min.Resolution	SR;Code39 4.8mil,UPC60% 5mil,PDF417 5mil,Datamatrix7.5mil
Print Contrast Signal	>30%(UPC/EAN 100%)
LED Indication	white
Sound	adjustable buzzer
Communication Interface	HID USB,USB Virtual COM,RS-232 ,PS2
Hysical Parameters
Dimension	86.6mmx137mmx169mm
Weight	114 (data line not included)
Wire Length	1m
Power Supply Parameters
Input Voltage	5VDC±1%
Working Current	85mA( operating)
Environment Parameters
Operating Temperature	-20°C~+50°C
Operating Humidity	5%~95% no condensation
Storage Temperature	-40°C~+70°C
Ambient Brightness	3000~8,000Lux(fluorescence),3000-8000Lux(sunlight)
Safety Standards
EMC	CE EN55022 B, FCC Part 15 Class B, SGS, IP54 Waterproof Test,
Laser Safety	IEC 60825-1 Class 1
Decode Type
1D Barcodes	UPC/EAN/JAN ,UPC/EAN with Supplementals,UCC/EAN 128,
	CODE 39,MSI,CODE 11,CODE 39 FULL ASCII,CODE 39 TriOptic
	code 128,code 128Full ASCII,Codebar ,code 93,Discrete20f5,
	IATA,RSSvariants,Codabar,Chinese2of5,Inteleaved2/5
	interleaved2of5,china post code and all international 1D code
2D Barcodes	PDF417, Data Matrix, QR Code, Aetec, Hanxin.

Q1. Are you manufacturing company or a trading company?
We are manufacturing company with our own factory and we could arrange a factory tour for you.

Q2. Can I get a sample from you?
Yes. You could contact us for a paid sample.

Q3. Do you have OEM/ODM services?
Yes. We are the factory directly, we have our own R&D team, we can make it as you requirement, Please contact us for details.

Q4. What's the MOQ for your products?
MOQ for most of our products is 1 Unit. If you purchase large qty,you will get a better price.

Q5. Can I get some technical supports from you?
Of cause! Our technical team always gets ready at any time.

Q6. What's the payment term?
By T/T, Western Union, Money Gram, PayPal, etc.

Q7. What's the shipping way?
Via air, sea or express like DHL, UPC, TNT, FedEx and so on.
