Name: Inventory 2.4G Wireless USB for Bluetooth 2D 1D QR Code Scanner LED Light Source Android Compatible Barcode Reader POS System
Brand: Guangzhou Luckydoor Electronic & Equipment Co., Ltd.
Availability: InStock

Home Products Portable Wireless Barcode Scanner

Inventory 2.4G Wireless USB for Bluetooth 2D 1D QR Code Scanner LED Light Source Android Compatible Barcode Reader POS System

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Luckydoor

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, COM
Max Paper Size:	A4 Size	Optical Resolution:	Code39 4.8mil
Scan Speed:	25inch/63cm Per Second	Warranty(year):	2-Year
After-sales Service:	Call Center And On-line Technical Support	Color:	Black
Product Name:	Bluetooth 2D Inventory Scanner Wireless	Light Source:	617nm LED Aimer, White LED
Scan Mode:	Auto Sense	Housing Material:	ABS+PC
Depth Of Scan Field:	5-390mm	Working Current:	135mA
Application:	Logistics, Supermarket, Store, Library, Warehouse, Hospital, Etc	Feature:	Handheld Wireless
Keywords:	2D Barcode QR Code Scanner

Inventory USB Bluetooth 2D Barcode Scanner 2.4GWireless 2D 1D QR code Reader For POS System

Product Description

The Wireless Barcode Reader is a versatile sample tracking instrument that decodes 2D and linear barcodes and QR codes. The wireless reader utilizes Blue tooth & 2.4Ghz wireless technology to allow mobility in the lab, cold room or in the field to yield efficient sample identification and tracking, and for direct input into a paired workstation, POS or portable device. this wireless barcode reader is capable of reading both 1D and 2D barcodes from paper and LED display.

Product Features

• 3 in 1 compatible with 2.4Ghz & Blue tooth & Wired
• Can use as wired and wireless barcode scanner
• 2 kinds of wireless solution :2.4Ghz and Blue tooth
• 4M memory allow max 35000 barcodes store (EAN13)
• Large battery support nearly 20000 scan per charge
• Compatible with Android,IOS mobile devices

Product Specifications

Performance Parameters

Light Sources

617nm LED Aimer, White LED

Supported Symbologies

1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1
Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5.
2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micor QR, Micor PDF417, Hanxin Code.

Resolution

640*480

Scan Method

Manual/Contnuous/Automatic inductive scanning

Scan Angle

Yaw 55°, Rotation 360°, Pitch 55°

Precision

≥5mil

Contrast

20%

Depth of Scan Field

EAN13 50-200mm(13mil);
QR 25-240mm(20mil);
PDF417 30-130mm(6.67mil)

Error Rate

Less than 1/5million

Interface

USB-HID

Wireless Communication

Pairing dedicated receiver: 2.4G communication
Pairing Mobile Blue tooth Devices: Blue tooth BLE 4.0

Transmission Distance

30-50M (Open yard)

Storage Mode

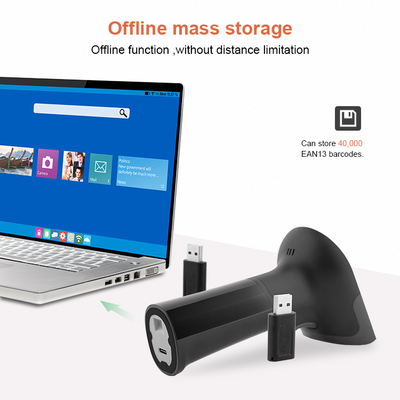

Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000
characters.
Inventory storage mode: Scanner can enter inventory mode,
storage capacity is 512000 characters.

Pairing Mode

One to One: One Scanning Gun Pairs One Receiver,
One scanner paired with a Blue tooth mobile device.

Physical Parameters

Dimensions

79.7mm*69mm*155mm

Weight

223.9g

Material

ABS+PC

Cable Length

1.2M

Environmental Parameters

Operating Temperature

-20℃ ~50℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95% RH(Non-condensing)

Ambient Lighting

0~100000LUX

Drop/Shock Resistance

Withstands multiple times 3 meters drops to concrete

Lectrical Parameters

Voltage

DC5V±5%

Operating Current

when not scanning code ≥26mA; when scanning code ≥280mA

Standby Current

0mA(Standby is to cut off battery power)

Charging Mode

Contact the charging

Battery Working Time

Charging Time

3.5h

Lithium Battery

1400mA

Charging Model

Square USB charging cable, plug straight charge

Product Images

Product Advantages

• Efficient decoding

• Waterproof, shockproof

• Super Smart

• Best price with high quality

• Fast delivery

Product Application:

• Point of sales system
• Shopping mall and center
• Chain and convenience stores
• Health care and pharmacy
• Library and warehouse

FAQ of L500RB wireless 2d barcode scanner reader::

1, What is a Blue tooth barcode scanner?
Blue tooth barcode scanners can pair directly with mobile devices like smart phones ,tablets, and connect devices through usbdongle or base which without blue tooth function.

2, How long can I use this bluet ooth 2d scanner to work?
The 2200mAh battery can support over 8 hours continuous operating.

3, If out of area ,will the data lose when I can new barcodes?
No, even out of the range ,the data will be saved in the scanner automatically ,just need the press the button to upload the
stored data when you back in the range.
