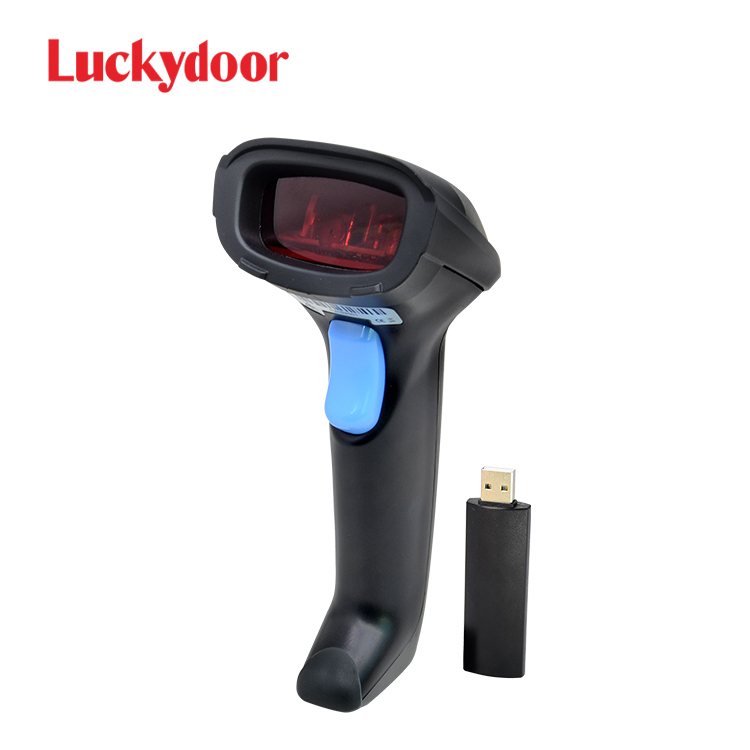

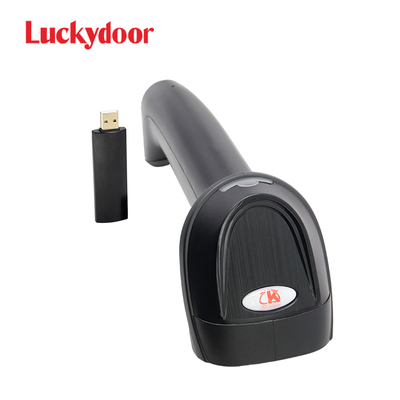

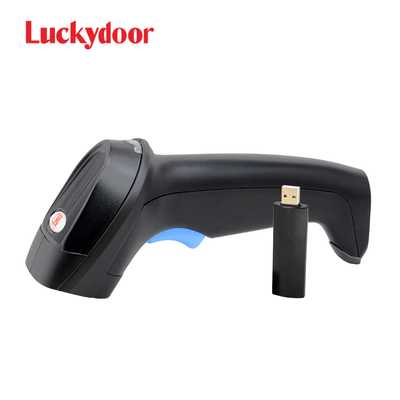

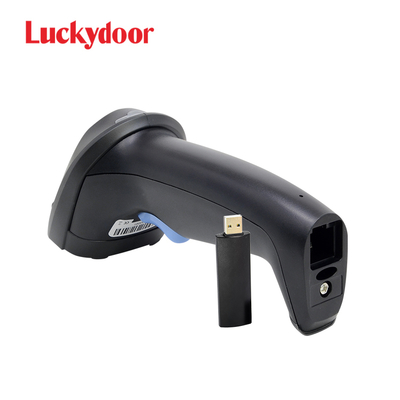

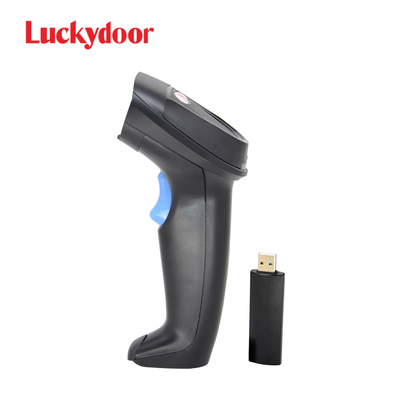

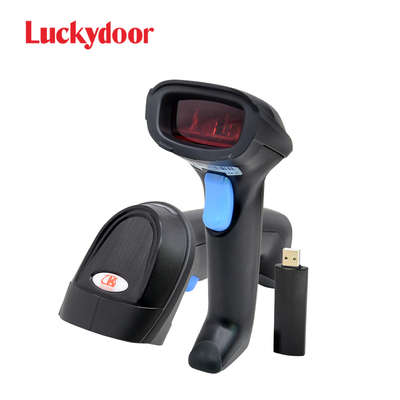

Factory price cheap fast scanning Wireless 2.4G Handheld 1D Laser Barcode Scanner
1.Single scanning beam, three directions
2.Light sources:650nm laser( safe visible laser diode)
3.Scan Type: Single laser
4.Scan Speed: >150times/sec
5.Depth of scan field:0-280mm(0.33mm,PCS90%)
6.Bite Error Rate: less than1/5 million
7.Interface: USB-HID,USB-COM,PS2,RS232
8.Good stability,suitable for various commercial uses, and industrial
9.ARM 32bit CPU supports
10.Drop/shock Resistance.
Specification
Light Source
650nm laser(Safe visible laser diode)
Decode Capability
UPC-A, UPC-E, EAN-8, EAN-13, Codebar, CODE39, CODE93, MSI, Code 39 Full ASCII, CODE128, Industrial 2 of 5, Interleave 2 of 5, Code 32(Italian pharm code), Code 39 extended, ITF-14, RSS 14, Matrix 2 of 5, Standard 2 of 5, Code 11, ISBN, ISSN, China Post.
Scan Type
Single Laser
Scan Speed
≥150 times/s
Scan Mode
ManuallyContnuous/Automatic inductive Scanning (Optional)
Scan Angle
Skew 55°, Rotation 30°, Pitch 65°
Resolution
4mil (0.1mm)
Depth of field
10-250mm(0.33mm,PCS90%)
Bit Error Rate
Less than 1/5million
Interface
USB-HID
Operation Frequency
2.4G
Depth of field
50-80M(Open Yard)
Storage Ability
512000Bytes
Pairing Model
One to one
Dimension
83mm*70mm*172mm
Weight
152.2g
Material
ABS+PC
Cable
1.8M straight
Operating Temperature
-20℃~40℃
Storage Temperature
-40℃~70℃
Humidity
5%~95%(Non-condensing)
DropShock Resistance
Withstands multiple times 3m drops to concrete
Voltage
DC5V±10%
Current
85mA(Operating);
150uA(Quiescent Current)
Lithium Battery
550mA
1D Wireless Barcode Scanner Pakcing Details:
1*Warehouse Barcode Scanner K-211R
Workshop Place:
Delivery:
Application:
Certificates:
FAQ
1: What is the working frequency of this Wireless Barcode Scanner?
Luckydoor: its working frequency is 2.Ghz
2: Dose this Wireless Laser Barcode Scanner has off-line function ?
Luckydoor: yes , this Wireless Laser Scanner with off-line function
3:How long the battery can work ?
Luckydoor: After full charge ,the Barcode Scanner can continuous working over 6hours
4: Do your company is a trading company ?
Luckydoor: We are professional manufacturer of Barcode Scanner ,have factory not a trading company
5: what is your quality policy after sale ?
Luckykdoor: the warranty on Wireless Barcode Scanner is 2years ,and cable is 6months
