Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner

Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner

  • Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
  • Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
  • Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
  • Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
  • Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
  • Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
  • Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Luckydoor
Contact Now
Detailed Product Description
Private Mold: NO Products Status: Stock
Type: Barcode Scanner Scan Element Type: Laser
Colour Depth: 32 Bit Interface Type: Usb, COM, PS/2, Rs232
Max Paper Size: A4 Size Optical Resolution: 3mil
Scan Speed: 300 Scans/sec Warranty(year): 2-Year
After-sales Service: Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support Software Development Kit (sdk): NO
Color: Black Product Name: 1d Bar Code Reader
Scan Type: Single Laser Line Interface: USB-HID, USB-COM, PS2, RS232
Working Voltage & Current: 5V,85mA Shell Material: ABS+PC
Color: Deep Grey Weight: 129.5g
Dimensions (W X D X H): 90*66*173mm Application: Logistics,Supermarket,Store,Libary,Warehouse,Hospital,etc
Certificate: CE, ROHS, FCC

Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner 0

Cost-Effective Wired Omni-Directional Portable 1D bar Code laser Reader Handheld Barcode Scanner



Product Description

 K-211 can be an entry level general purpose 1D linear imager barcode scanner. It is ideal for retail, light manufacturing, document processing, and financial institutions where point of sale, asset tracking, inventory control or other daily operations are being conducted. It is small, lightweight and ergonomic design, combined with its wide angle scanning which makes this scanner the perfect solution for your introduction into data capture.



Specification



Light Source 650nm laser(Safe visible laser diode)
Decode Capability UPC-A, UPC-E, EAN-8, EAN-13, ISSN, CODE39, CODE 39 Full ASCII, MSI, CODE93, Plessey, CODE128, Codebar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Standard 2 of 5, ISBN, Code 11, Code 32(Italian pharm code), Code 39 extended, GS1-128 and ITF-14, SISAS, GS10 mnidirecional, RSS14, GS1 Limited, Aviation25, China Post.
Scan Type Single Laser
Scan Speed ≥150 times/s
Scan Mode ManuallyContnuous/Automatic
                        inductive Scanning (Optional)
Scan Angle Skew 55°, Rotation 30°, Pitch 65°
Resolution ≥3mil
Depth of field 10-280mm(0.33mm, PCS90%)
Bit Error Rate Less than 1/5million
Interface USB-HID, USB-COM, PS2, RS232
Dimension 83mm*70mm*172mm
Weight 126.6g
Material ABS+PC
Cable 1.8M straight
Operating Temperature             -20℃~50℃
Storage Temperature                -40℃~70℃
Humidity 5%~95%(Non-condensing)
DropShock Resistance  Withstands multiple times 3m drops to concrete
Voltage DC5V±1%
Working Current                             85mA
Product Feature

 1.Single scanning beam, three directions

2.Light sources:650nm laser( safe visible laser diode)

3.Scan Speed: >300times/sec

4.Depth of scan field:0-280mm(0.33mm,PCS90%)

5.Bite Error Rate: less than1/5 million

6.Good stability,suitable for various commercial uses, and industrial

7.ARM 32bit CPU supports

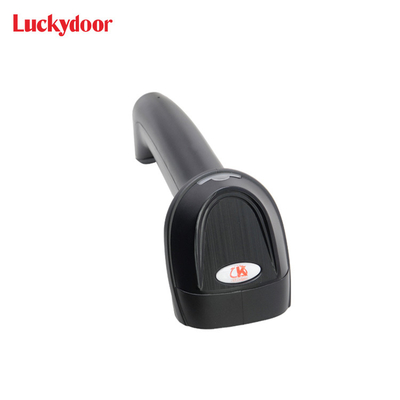

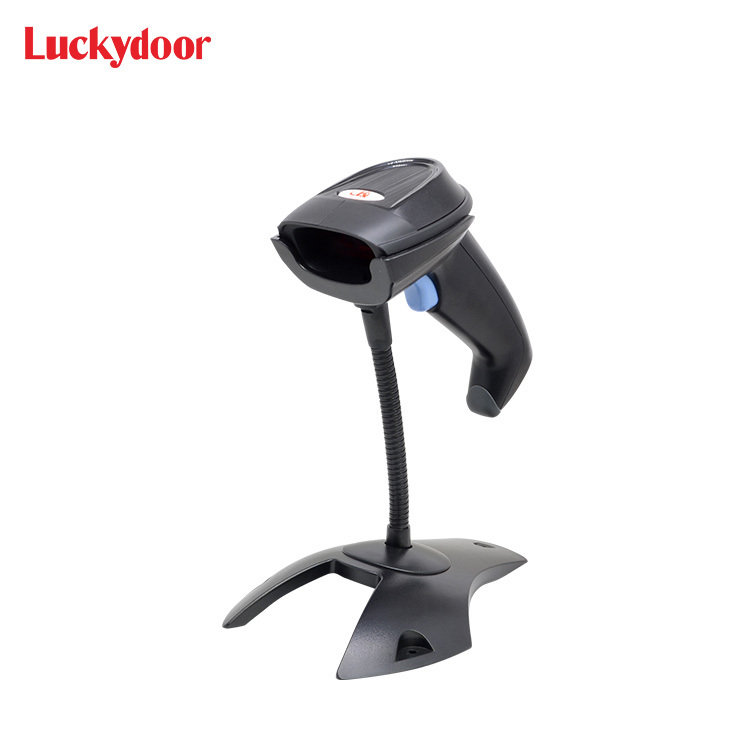

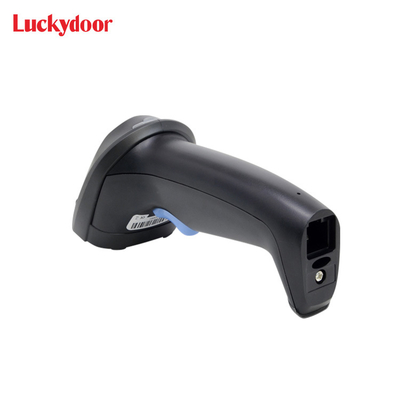

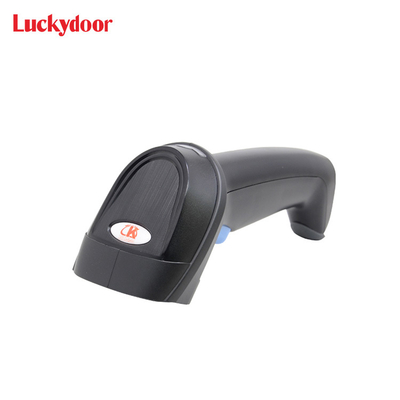

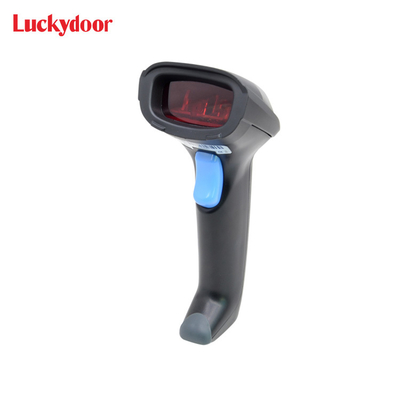

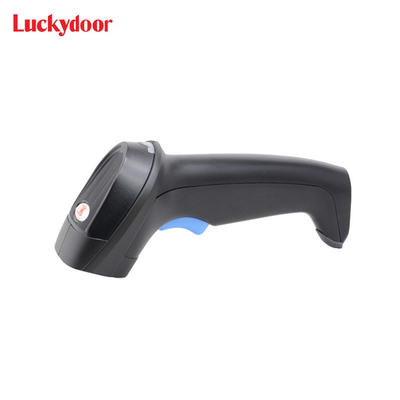

Product Pictures
