Name: High Performance Platform 2D CMOS Omnidirectional Barcode Scanner Supermarket Desktop Barcode Reader Scanner
Brand: Guangzhou Luckydoor Electronic & Equipment Co., Ltd.
Availability: InStock

Home Products 2D Desktop Barcode Scanner

High Performance Platform 2D CMOS Omnidirectional Barcode Scanner Supermarket Desktop Barcode Reader Scanner

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Luckydoor
Certification:	FCC, ROHS, CE

Contact Now

Detailed Product Description

Private Mold:	NO	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, COM, PS/2
Max Paper Size:	A4 Size	Optical Resolution:	≥4mil
Scan Speed:	1500scans/second	Warranty(year):	2-Year
After-sales Service:	Free Spare Parts	Software Development Kit (sdk):	NO
Color:	Black	Product Name:	2d Platform Barcode Scanner
Light Source:	RED LED	Interface:	USB-HID, USB-COM, RS232
Precision:	≥4mil	Working Current:	240mA
Decode Capabilities:	1D + 2D + QR Code	Scan Mode:	Auto Induction Scanning
Application:	Commercial	Feature:	High Performance

high performance platform 2D CMOS omnidirectional Barcode Scanner supermarket Desktop Barcode Reader scanner

Product Description:

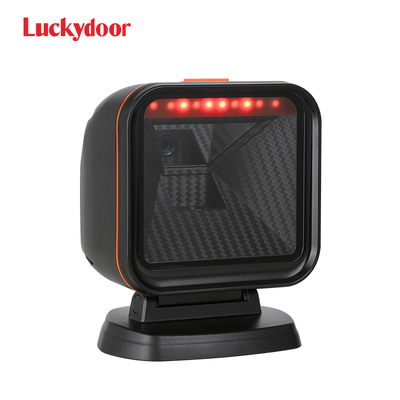

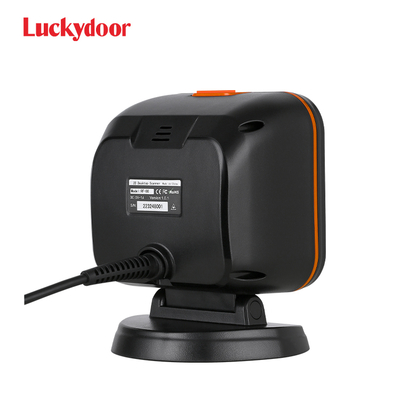

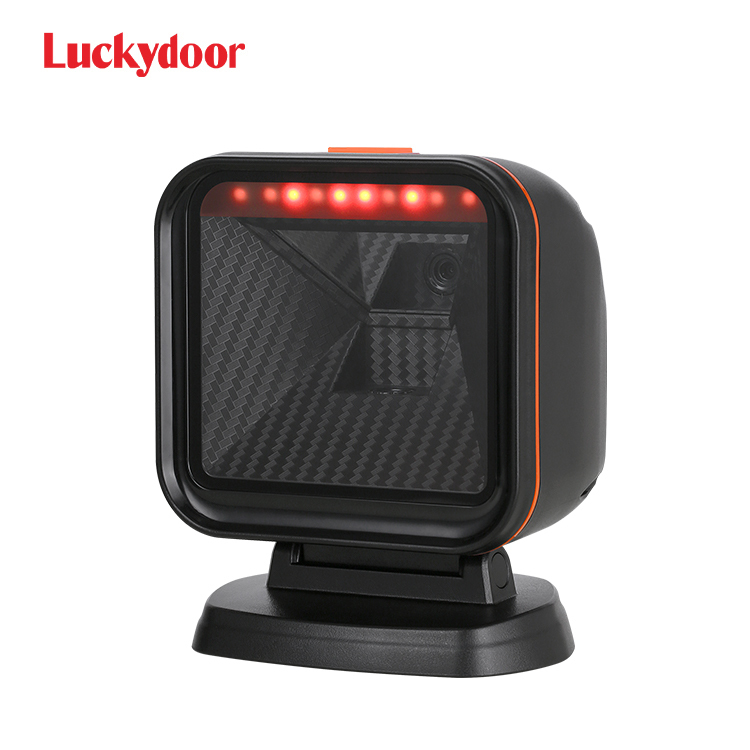

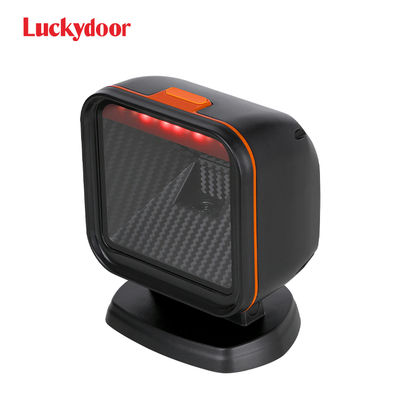

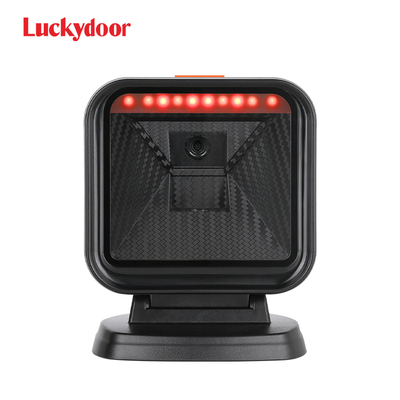

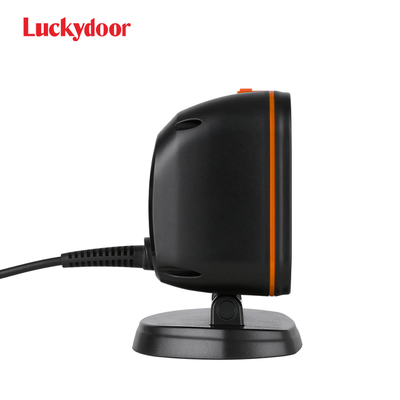

K-PS80H is a high performance platform with leading CMOS image recognition technology and intelligent image recognition system.

It can scan universal 1D 2D codes, read the paper, goods, screens, other media barcodes.

Compact design, beautiful appearance with efficient reading performance, provide users with excellent experience.

Features:

1 Large window design, large viewing angle, ultra-sensitive auto sense scanning.

2 Read all mainstream 1D 2D barcodes in the market easily. (4mil)

3 Support multiple languages and systems.

4 Interface: USB, RS232.

5 Widely used in supermarket, chain stores, mobile payment.

Specification
Performance Parameters
Light Source	Red LED
Supported symbologies	1D: UPC, EAN, Code 39(with full ASCII), Codabar, Code 128, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI-Plessey, GS1 DataBar, etc. 2D: PDF417, Data Matrix, QR Code, etc.
Scan Mode	Auto Induction Scanning
Mobile tolerance	4 meters/second
CPU	32bit MIPS@1G Hz
Precision	≥4mil
Bit Depth of field	10-160mm@(EAN13mil 13mil, PCS=90%)
Interface	USB, USB-COM, RS232
Physical Parameters
Dimensions	118mm98mm144.4mm
Weight	390g
Material	ABS+PC
Cable Length	1.8m
Environmental Parameters
Operating Temperature	0℃ ~ 50℃
Storage Temperature	-40℃ ~ 70℃
Humidity	0% to 95% RH(Non-condensing)
Shock Resistance	Withstands multiple times 1.5 meters drops to concrete
Electrical Parameters
Working Voltage	DC5V ±5%
Max Power Consumption	Working current 240mA

Company Information

Guangzhou Luckydoor Electronic Equipment Co.Ltd is one of leading hardware solution provider in Retail industry, specialized in total retail terminal hardware solutions, such as POS Thermal, Barcode Scanner,Thermal Printer, Magnetic Stripe Card Reader, Cash Drawer ect. Which are widely used for retailing, restaurant, bank, lottery, transportation, logistics, and other applications.We have CCC,CE, FCC,ROHS, BIS, and other required certifications if you need, We believe and focus on reliable products with competitive price, good quality and punctual delivery also in after-sales service.Which help us to meet and exceed the customers' expectations. With'"Innovation, Integrity, Cooperation"based to achieve our win-win business relationship with you is our mission.

Certificates

FAQ

Q1. Are you manufacturing company or a trading company?
We are manufacturing company with our own factory and we could arrange a factory tour for you.

Q2. Can I get a sample from you?
Yes. You could contact us for a paid sample.

Q3. Do you have OEM/ODM services?
Yes. We are the factory directly, we have our own R&D team, we can make it as you requirement, Please contact us for details.

Q4. What's the MOQ for your products?
MOQ for most of our products is 1 Unit. If you purchase large qty,you will get a better price.

Q5. Can I get some technical supports from you?
Of cause! Our technical team always gets ready at any time.

Q6. What's the payment term?
By T/T, Western Union, Money Gram, PayPal, etc.

Q7. What's the shipping way?
Via air, sea or express like DHL, UPC, TNT, FedEx and so on.
