Name: Chinese Factory 2d Qr Lecteur Code bar Use with Pos Machine for Pos Systems
Brand: Guangzhou Luckydoor Electronic & Equipment Co., Ltd.
Availability: InStock

Home Products 2D Barcode Scanner

Chinese Factory 2d Qr Lecteur Code bar Use with Pos Machine for Pos Systems

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	luckydoor

Contact Now

Detailed Product Description

Private Mold:	NO	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, COM
Max Paper Size:	A4 Size	Optical Resolution:	Code39 4.8mil
Scan Speed:	25inch/63cm Per Second	Warranty(year):	2-Year
After-sales Service:	Free Spare Parts	Software Development Kit (sdk):	NO
Color:	Black	Product Name:	QR Code Scanner
Light Source:	617nm LED Aimer, White LED	Housing Material:	ABS+PC
Depth Of Scan Field:	5-390mm	Working Current:	135mA
Weight:	250g	Dimensions (W X D X H): X H):	102mm71mm177mm
Application:	Application	Certificate:	CE, ROHS, FCC

LKD K-626 Market hot selling RS232 POS QR Code Scanner for supermarket

Product Brief:

1.Light sources: 617nm LED Aimer,White LED

2.Scan Type: Image COMS

3.Scan Speed: >25inch/63cm per second

4.Working voltage & current: 5V,300mA

5.Interface: USB-HID, USB-COM, PS2, RS232

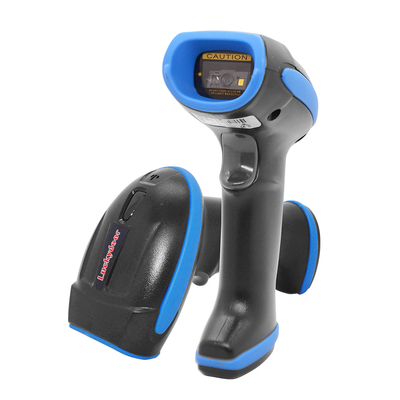

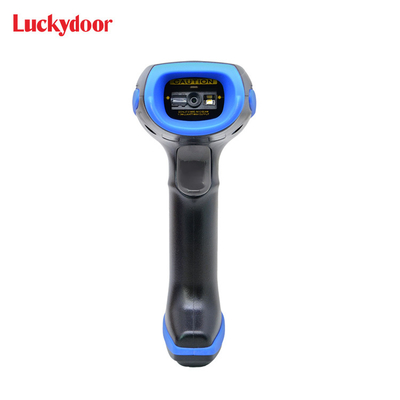

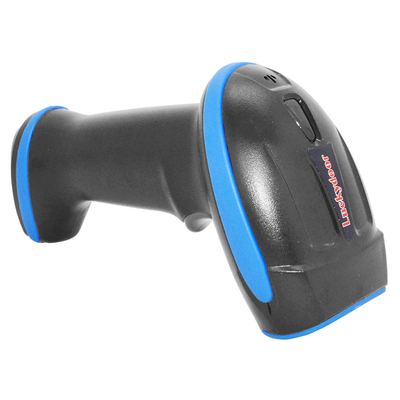

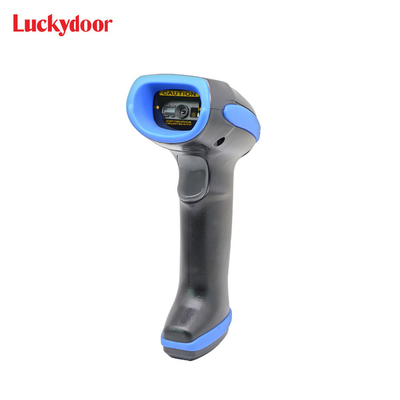

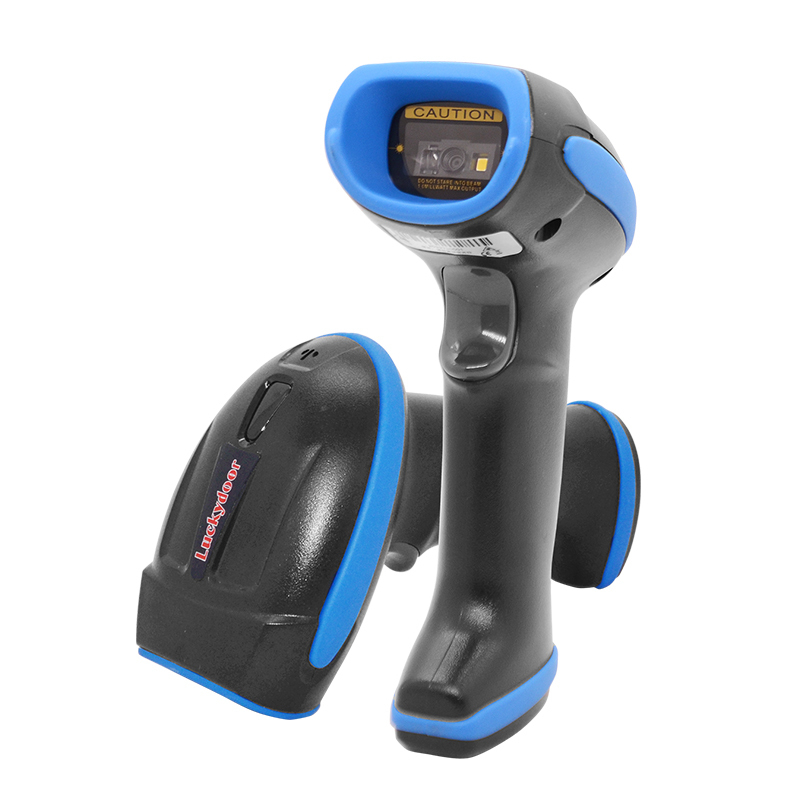

Photo details:

Working Parameters
Light Source	617nm LED Aimer,White LED
Scan Distance	5-390mm
Scan Angle	Yaw 65°,Rotation 60°,Pitch 360°
Scan Speed	>25inch/63cm each second
Min.Resolution	SR;Code39 4.8mil,UPC60% 5mil,PDF417 5mil,Datamatrix7.5mil
Print Contrast Signal	>30%(UPC/EAN 100%)
LED Indication	white
Sound	adjustable buzzer
Communication Interface	HID USB,USB Virtual COM,RS-232 ,PS2
hysical Parameters
Dimension	176mmx100mmx72mm
Weight	354g (data line not included)
Wire Length	2.0m
Power Supply Parameters
Input Voltage	5VDC±1%
Working Current	85mA( operating)
Environment Parameters
Operating Temperature	-20°C~+50°C
Operating Humidity	5%~95% no condensation
Storage Temperature	-40°C~+70°C
Ambient Brightness	3000~8,000Lux(fluorescence),3000-8000Lux(sunlight)
Safety Standards
EMC	CE EN55022 B, FCC Part 15 Class B, SGS, IP54 Waterproof Test,
Laser Safety	IEC 60825-1 Class 1
Decode Type
1D Barcodes	UPC/EAN/JAN ,UPC/EAN with Supplementals,UCC/EAN 128,
	CODE 39,MSI,CODE 11,CODE 39 FULL ASCII,CODE 39 TriOptic
	code 128,code 128Full ASCII,Codebar ,code 93,Discrete20f5,
	IATA,RSSvariants,Codabar,Chinese2of5,Inteleaved2/5
	interleaved2of5,china post code and all international 1D code
2D Barcodes	PDF417, Data Matrix, QR Code, Aetec, Hanxin.

Packing Details:

List per Unit:
1*rs232 pos qr code scanner of K-626
1*Stand(optional)
1*2Cable
1*User Manual(English Version)
Dimensions per Unit: 10*8*19 CM /10*8*24CM
Units per Export Carton: 50 Units
Export Carton Dimensions: 53*50*42.5 CM /65*50*50CM
