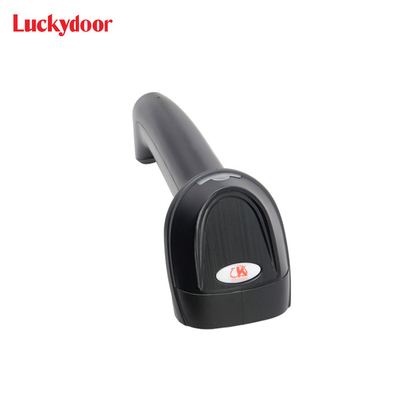

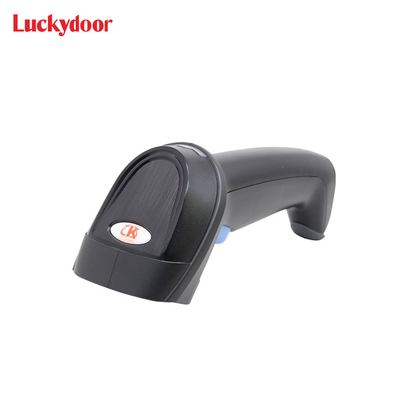

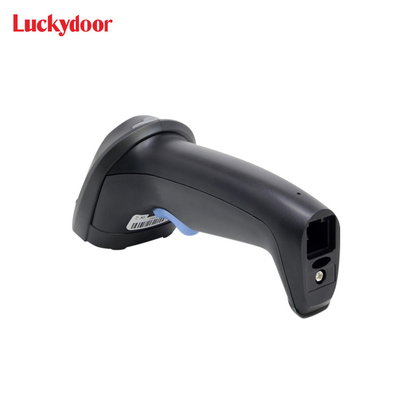

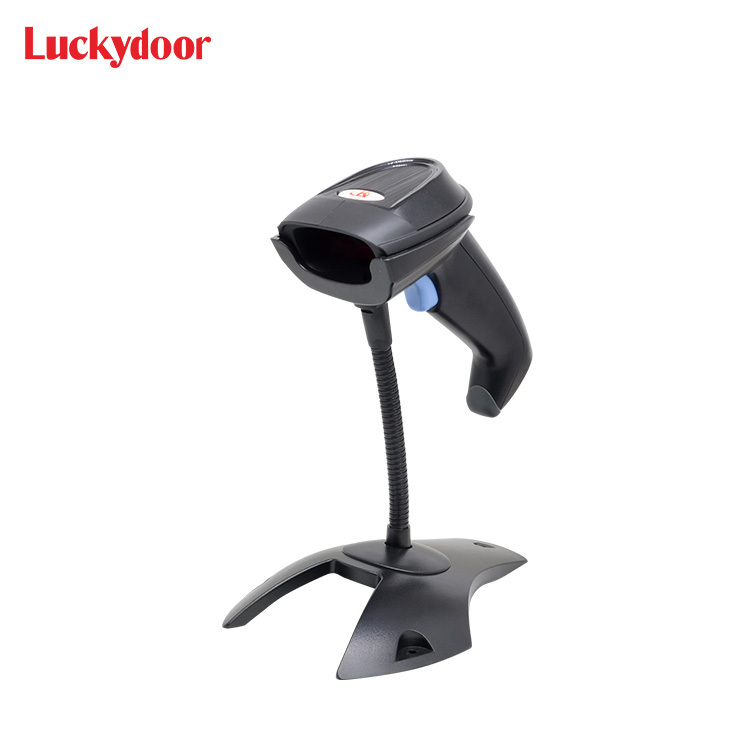

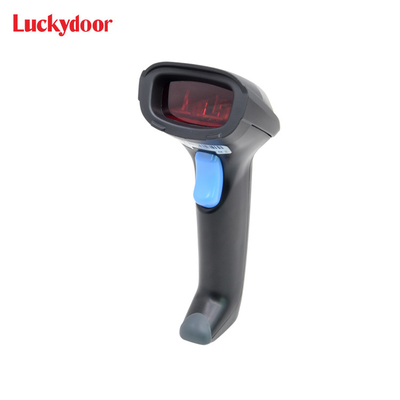

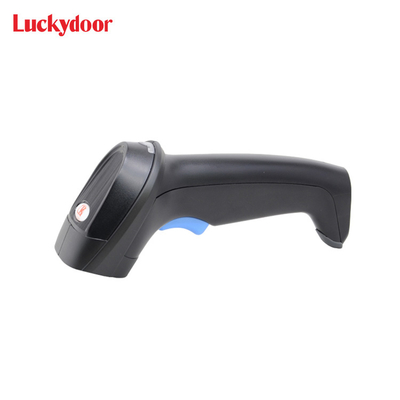

Name: 1D Handheld Barcode Scanner / Barcode Reader Luckydoor K-211
Brand: Guangzhou Luckydoor Electronic & Equipment Co., Ltd.
Availability: InStock

Home Products 1D Laser Barcode Scanner

1D Handheld Barcode Scanner / Barcode Reader Luckydoor K-211

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Luckydoor

Contact Now

Detailed Product Description

Private Mold:	NO	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	Laser
Colour Depth:	32 Bit	Interface Type:	Usb, COM, PS/2, RS232
Max Paper Size:	A4 Size	Optical Resolution:	4mil
Scan Speed:	300 Scans/sec	Warranty(year):	2-Year
After-sales Service:	Free Spare Parts	Software Development Kit (sdk):	NO
Color:	Black	Product Name:	USB Bar Code Scanner
Scan Type:	Single Laser Line	Interface:	USB-HID, USB-COM, PS2, RS232
Working Voltage & Current:	5V,85mA	Shell Material:	ABS+PC
Color:	Deep Grey	Weight:	129.5g
Dimensions (W X D X H):	9066173mm	Application:	Logistics,Supermarket,Store,Libary,Warehouse,Hospital,etc
Certificate:	CE, ROHS, FCC

Product Brief :

1.Single scanning beam, three directions

2.Light sources:650nm laser( safe visible laser diode)

3.Scan Speed: >300times/sec

4.Depth of scan field:0-280mm(0.33mm,PCS90%)

5.Bite Error Rate: less than1/5 million

6.Good stability,suitable for various commercial uses, and industrial

7.ARM 32bit CPU supports

Product Specification:

Working Parameters
Light Source	650nm laser( Safe visible laser diode)
Scan Distance	0~280mm @ UPC/EAN PCS=90%
Scan Angle	Yaw 65°,Rotation 30°,Pitch 55°
Scan Speed	>300 ms/s
LED Indication	blue + red
Sound	adjustable buzzer
Physical Parameters
Dimension	155mmx100mmx72mm
Weight	249g (data line not included)
Wire Length	2.0m
Power Supply Parameters
Input Voltage	5VDC±1%
Working Current	85mA( operating)
Environment Parameters
Operating Temperature	-20°C~+50°C
Operating Humidity	5%~95% no condensation
Storage Temperature	-40°C~+70°C
Ambient Brightness	0~4,000Lux(fluorescence),0~100,000Lux(sunlight)
Safety Standards
EMC	CE EN55022 B, FCC Part 15 Class B, SGS, IP54 Waterproof Test,
Laser Safety	IEC 60825-1 Class 1
